Basic Info.
| Model NO. | PT-1220-250 | Drive | Air Control |
| Type | Directly Operated Type | Model No | PT-1220-250 |
| Material | Cast Iron 450 | Working Temperature | -20 to 80ºC |
| Maximum Work Pressure | 25MPa | Air Pressure Control | 0.6-1.2MPa |
| OEM/Ode | Yes | Application | Construction Machinery, Agricultural Equipment |
| Support for Customization | Yes | Weight | 6.3kg |
| Transport Package | Cartonbox | Specification | 32cm*18cm*9cm |
| Trademark | HGLT | Origin | Shandong China |
| HS Code | 8412299090 | Production Capacity | 20000/Year |
Packaging & Delivery
| Package Size | 32.00cm * 18.00cm * 9.00cm |
| Package Gross Weight | 6.300kg |
| Lead Time | 15 days (1 - 10 Pieces) To be negotiated ( > 10 Pieces) |
Product Description
Suitable for control of up to multiple front cylinders, direct oil return can be made by the lower oil return port T mounted on the tank seat. You can also choose to place the oil return port T1 on the side and use the tube type oil return.Remote air pressure control carriage lifting and lowering. The function of safe slow down under heavy load can also be realized by slow down switch.Equipped with pilot relief valve and oil inlet check valve, the system pressure can be set.

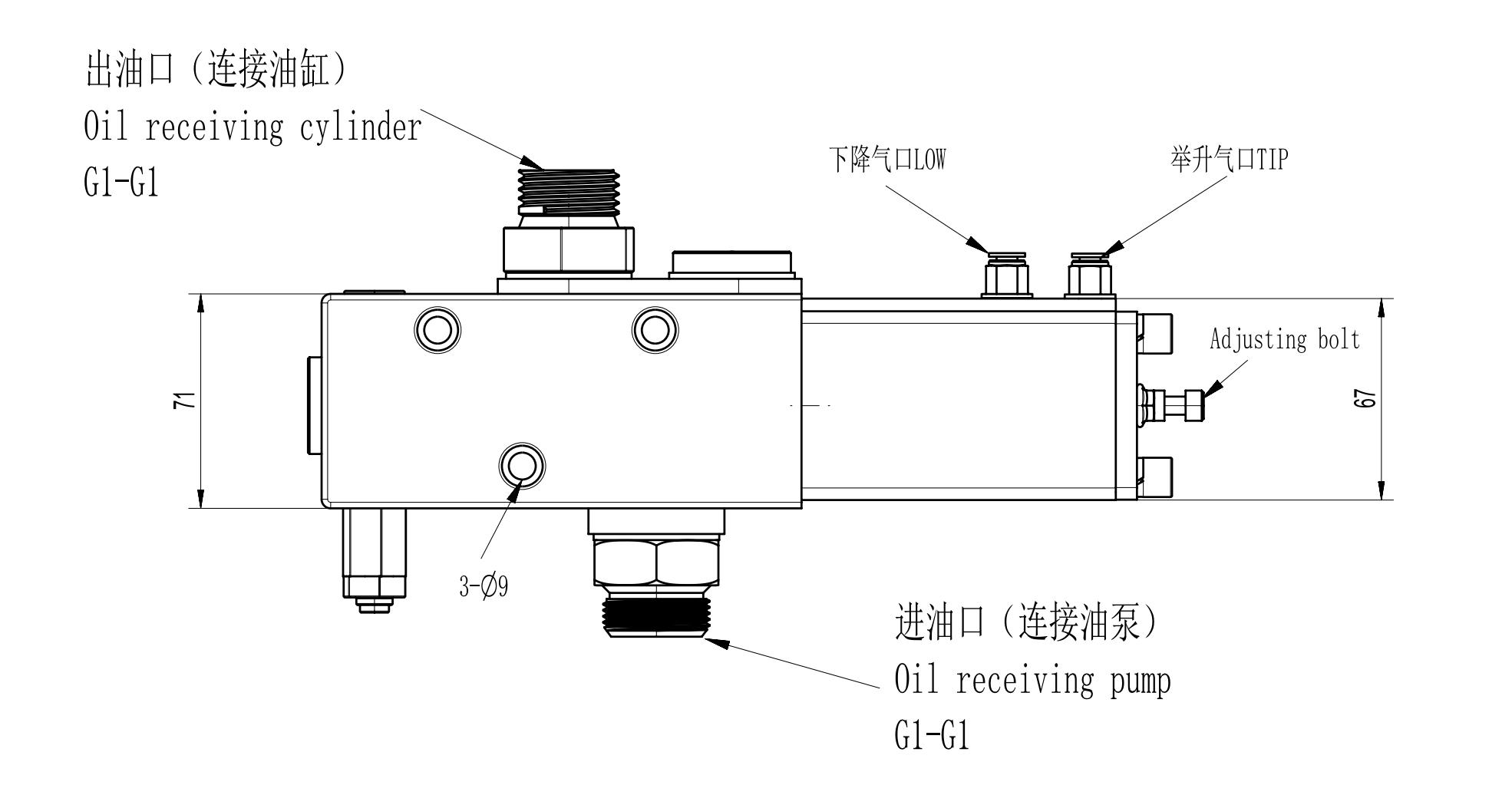

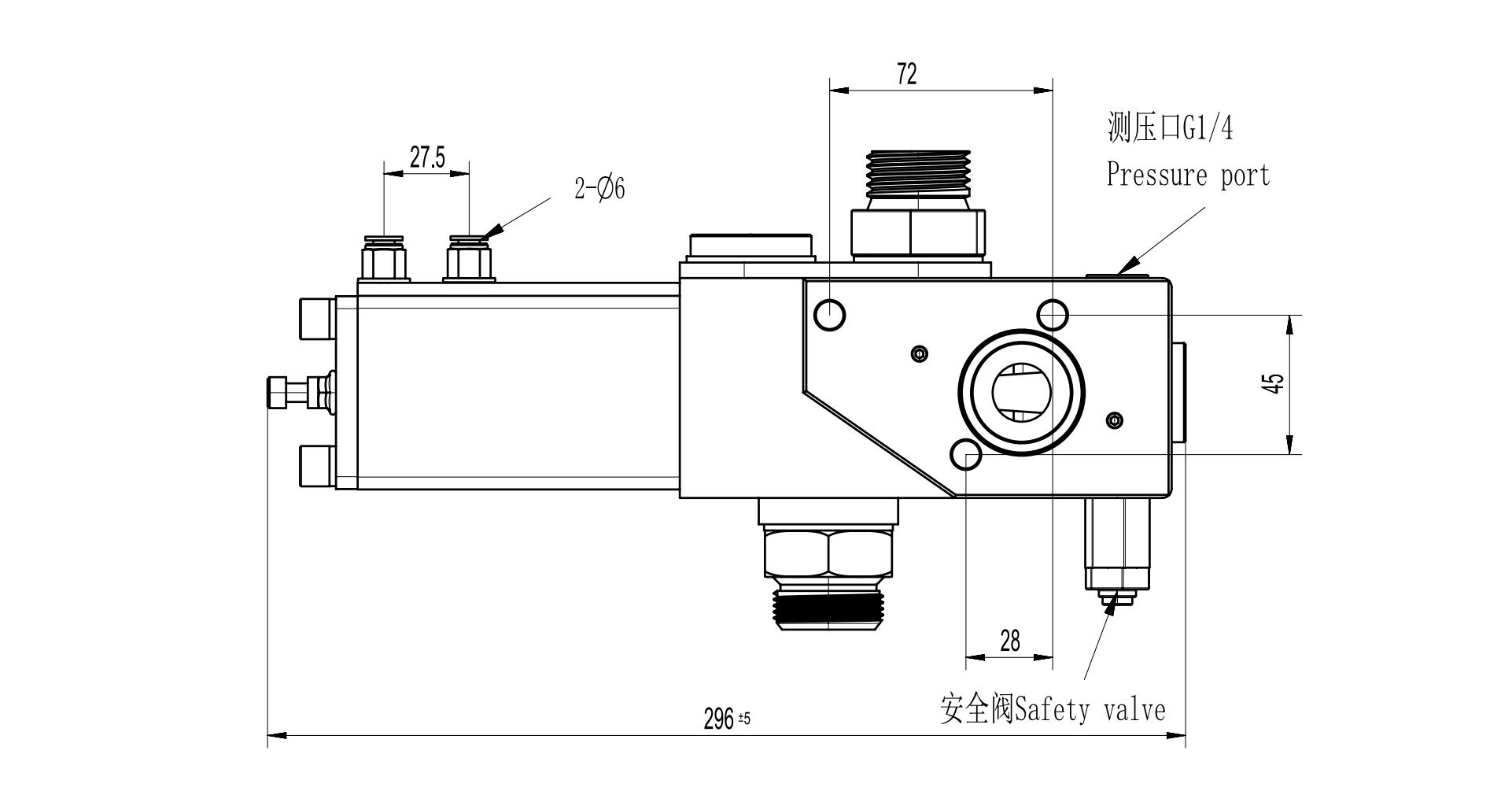

Outlinedrawing
