Basic Info.
| Model NO. | QHY-E80L-A | Drive | Air Control |
| Type | Directly Operated Type | Model No | PT-1220-250 |
| Material | Cast Iron 450 | Working Temperature | -20 to 80ºC |
| Maximum Work Pressure | 18MPa | Air Pressure Control | 0.6-1.2MPa |
| OEM/Ode | Yes | Application | Construction Machinery, Agricultural Equipment |
| Support for Customization | Yes | Transport Package | Cartonbox |
| Specification | 22.5cm*12.5cm*9cm | Trademark | HGLT |
| Origin | Shandong China | HS Code | 8412299090 |
| Production Capacity | 20000/Year |
Packaging & Delivery
| Package Size | 22.50cm * 12.50cm * 9.00cm |
| Package Gross Weight | 6.300kg |
| Lead Time | 25 days (1 - 10 Pieces) To be negotiated ( > 10 Pieces) |
Product Description
It is suitable for the hydraulic system of dump trucks and can be used with multi-stage cylinders to realize the lifting and stopping of the cylinder.Can achieve fast descent and slow descent.Built-in safety relief valve, system pressure can be set.Control air valve and remote air control reversing control can be used.

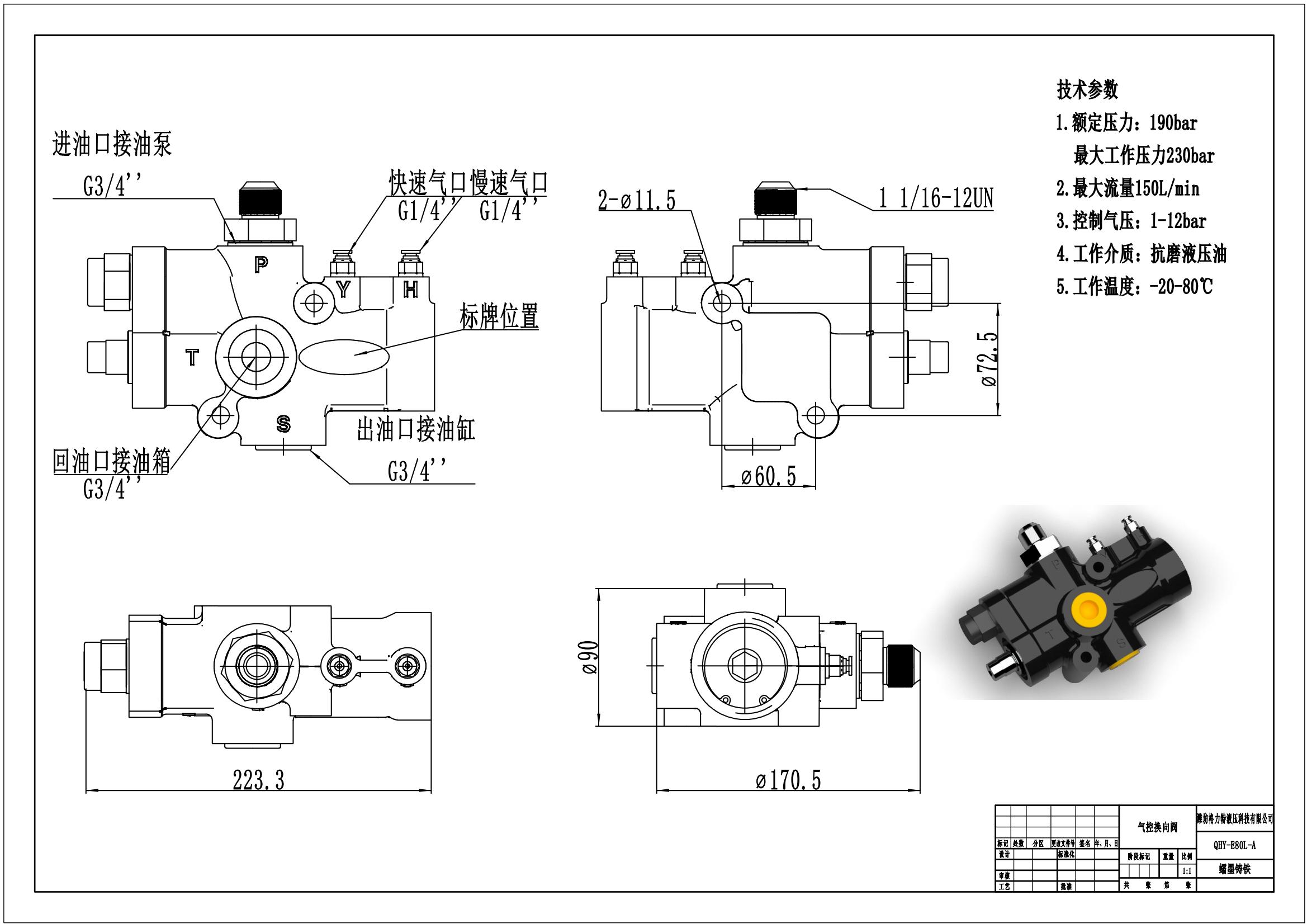

Outline drawing
