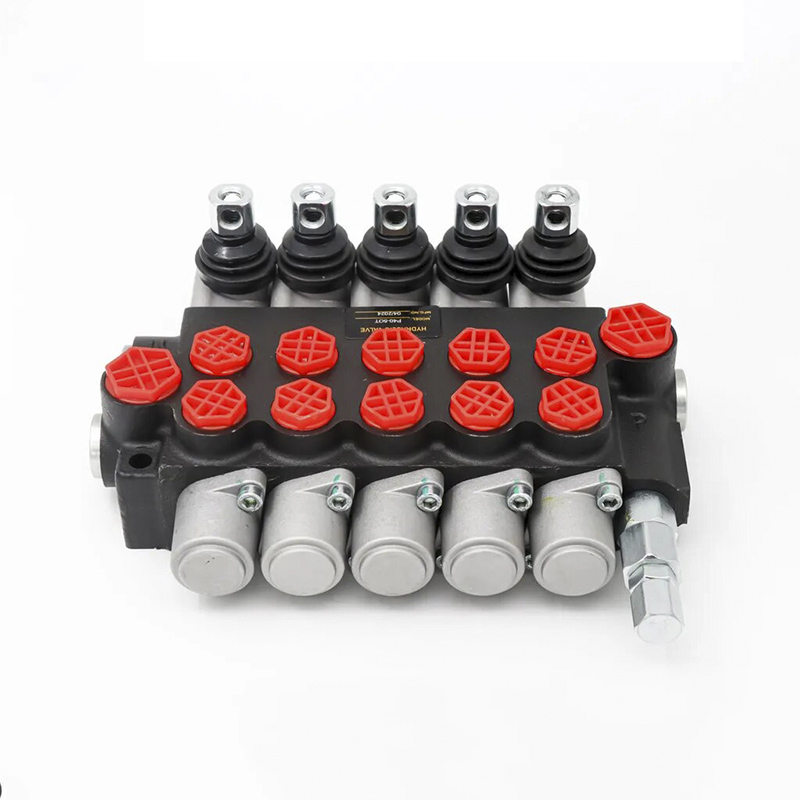

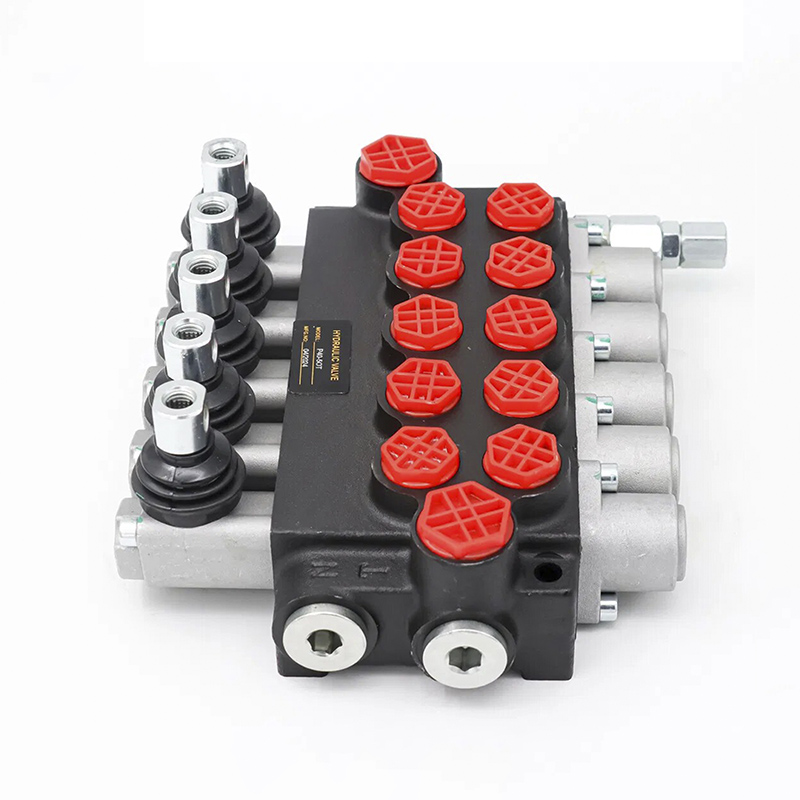

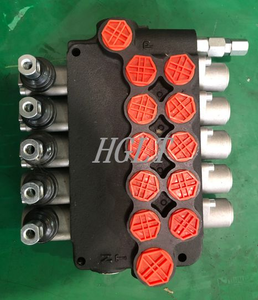

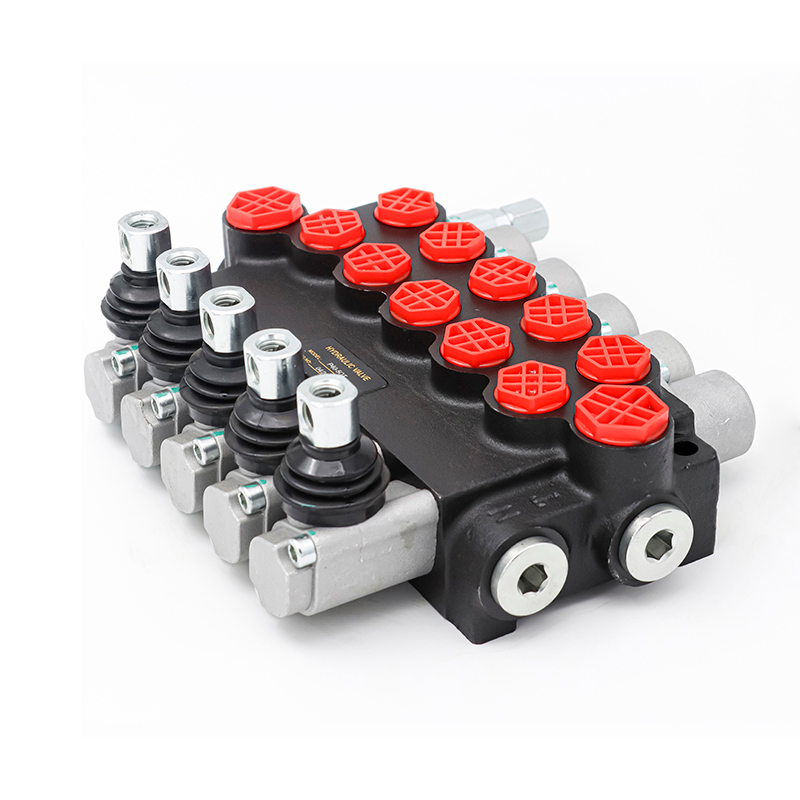

P40 (5T) Integrated Slide Valve Directional Hydraulic Control Valve for High Quality Loaders

Customization: Available
Function: Balance, Pressure Regulating, Reversing, Flow Control
Installation: Threaded Cartridge

Product Description

Basic Info.

Model NO.	P40-5-OT	Drive	Hydraulic
Type	Directly Operated Type	Model No	P40-1
Working Temperature	-30 to 80ºC	OEM/Ode	Yes
Application	Construction Machinery, Agricultural Equipment	Support for Customization	Yes
Warranty	1 Year	Power	Pneumatic
Color	Red, Black or Customized	Structure	Monoblock
Connection Mode	Internal Thread	Rated Flow	40L/Min
Number of Spool	1-6	Material	Iron Casting
Nominal Pressure	20MPa	Maximum Work Pressure	25MPa
Transport Package	Cartonbox	Specification	20cm24cm9cm
Trademark	HGLT	Origin	Shandong China
HS Code	8412299090	Production Capacity	20000/Year

Packaging & Delivery

Package Size	20.00cm * 24.00cm * 9.00cm
Package Gross Weight	17.000kg
Lead Time	25 days (1 - 10 Pieces) To be negotiated ( > 10 Pieces)

Product Description

P40 series valves with middle-high pressure monoblock construction is developed based on Europe

technology.

Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be

returned.

Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working

pressure.

Oil way: Parallel circuit, power beyond option

Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

Valve construction: monoblock construction, 1-7 levers.

Spool Function: O,Y,P,A.

Option: Hydraulic lock is available to be added on A and B port.

Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric

control and etc.
